Choosing the right restraint equipment is about more than a strong steel frame at a good price. The right unit should make cattle handling safer, easier and more efficient for both animals and operators.
Whether you run a family farm, a cattle ranch or a commercial livestock operation, this guide will help you understand how to select, maintain and troubleshoot a cattle squeeze chute.

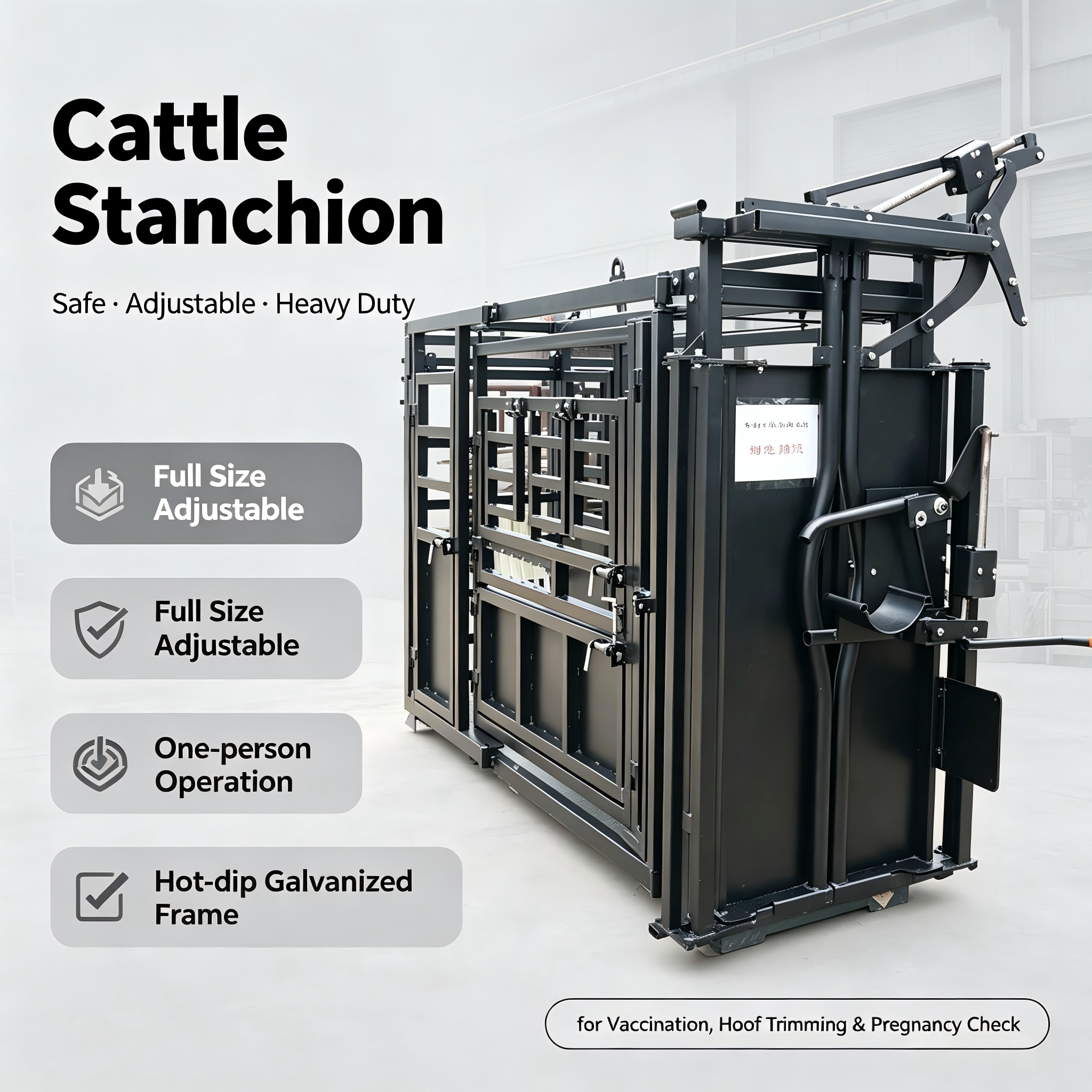

A cattle crush — also called a squeeze chute or restraint chute — is used to safely hold cattle during routine procedures such as:
Vaccination
Veterinary examination
Ear tagging
Weighing
Health treatment
Pregnancy checking
Identification
The term "cattle crush" is common in Australia, New Zealand and the UK, while "squeeze chute" is widely used in the United States. Different names, the same purpose: safe, controlled livestock handling.
Start with the animals, not the price tag.
Think about whether you mainly handle calves, cows, mature cattle, bulls or mixed-size groups. If your herd includes different sizes, an adjustable model offers greater flexibility.
Check the following specifications:
Working width
Overall dimensions
Head gate opening
Restraint range
Maximum recommended cattle size
The head gate is one of the most critical components. It should be strong, easy to operate and matched to your animals. A well-designed gate provides secure restraint while allowing operators safe access to the animal.
A manual crush suits small and medium-sized farms that prefer simple operation and easy maintenance.
A hydraulic crush is useful for larger farms or operations that handle cattle frequently, as it reduces physical effort.
The right choice depends on your herd size and daily workload — not simply which option looks more powerful.
Cattle need stable footing. Look for a non-slip floor that is strong, easy to clean and suited to farm conditions. Mud, manure and water should be removed regularly to reduce slipping risks.
A restraint chute normally works alongside:
Cattle panels
Working alleys
Holding pens
Sorting gates
Loading ramps
Before ordering, measure your available space and plan how cattle will enter and leave the unit. A good handling system allows animals to move naturally toward the restraint area.
Even heavy-duty livestock gear needs regular care.
Quickly inspect:
Head gate
Squeeze panels
Locks and hinges
Pins and bolts
Floor condition
Hydraulic hoses (if applicable)
Look for loose parts, cracks, unusual movement or hydraulic leaks.
Remove manure, mud and debris from the floor and moving parts. Clean the equipment and allow it to dry. Lubricate moving components according to the manufacturer's recommendations.
Regular inspection catches small problems before they become expensive repairs.
Possible causes: dirt buildup, lack of lubrication, misalignment or worn parts.
Solution: Clean the mechanism, check hinges and pins, lubricate where required and inspect for damaged components.
Check for dirt buildup, dry pivot points, loose components or mechanical damage. On hydraulic models, also inspect hoses, fittings and the hydraulic system.
Possible causes: leakage, damaged hoses, loose fittings or cylinder problems.
If you find a leak, stop using the equipment and have the system inspected before resuming operation.
Check the floor for mud, manure, water or worn anti-slip surfaces. Keeping the floor clean and maintaining good footing is essential for safe handling.
When purchasing livestock handling equipment, the manufacturer matters. A factory can communicate directly with you about:
Dimensions
Steel material
Structure
Surface treatment
Customization
Spare parts
Packaging
Complete handling systems
We are a source livestock equipment manufacturer with 23 years of experience, supplying equipment for cattle, sheep, horses, pigs and poultry. Our cattle range includes crushes, restraint gear, panels, gates and complete handling systems. Products carry CE certification, and we support customized requirements for different farms and projects.
You are also welcome to visit our factory — see the production facilities, discuss your needs with our team and inspect the manufacturing process in person.
What is the difference between a cattle crush and a squeeze chute?
There is no functional difference. "Cattle crush" is the preferred term in Australia, New Zealand and the UK, while "squeeze chute" is commonly used in the US. Both describe the same restraint equipment.
Should I choose a manual or hydraulic crush?
Manual models are simpler and easier to maintain, making them ideal for smaller farms. Hydraulic models reduce operator effort and are better suited to high-volume operations.
How often should I lubricate the moving parts?
Follow the manufacturer's recommendations. As a general rule, lubricate hinges, pins and pivot points after every deep clean, or at least once per month under regular use.
Can a cattle crush be customized for my farm?
Yes. Many manufacturers offer adjustable widths, custom head gate sizes, additional weighing systems and tailored floor treatments to match specific farm layouts.
Every farm is different. Your cattle sizes, herd numbers, farm layout and handling requirements should all be considered before making a decision.
If you need a crush, squeeze chute or complete handling system, send us your cattle sizes, required dimensions or farm layout. Our experienced team can help you find a suitable solution.
